The Complete Industry Guide
Graphite Crucibles:
The Ultimate Guide
Everything you need to know about graphite crucibles -- from material science and manufacturing processes to selection criteria, industry applications, and maintenance best practices.
Scroll
Max Temperature
Carbon Purity
Industries Served
Manufacturing Experience
Overview
What Is a Graphite Crucible?
A graphite crucible is a high-performance container manufactured from high-purity graphite or graphite-clay composite materials, specifically engineered to withstand extreme temperatures during metal melting, casting, chemical processing, and laboratory analysis.
Graphite's exceptional thermal conductivity, chemical inertness, and mechanical stability at temperatures exceeding 3000°C make it the material of choice for demanding industrial applications where conventional ceramic or metal containers would fail.
Unlike clay-graphite crucibles of the past, modern isostatic graphite crucibles and extruded graphite crucibles offer precise dimensional tolerances, superior oxidation resistance, and extended service life -- dramatically reducing per-melt costs in high-volume production environments.
Extreme Heat Resistance
Withstands temperatures up to 3000°C+ in inert atmospheres, maintaining structural integrity under rapid thermal cycling.
Chemical Inertness
Resistant to most acids, alkalis, and molten metals, preventing contamination of precious metal melts.
Superior Thermal Conductivity
High thermal conductivity (80-150 W/m·K) enables faster, more uniform heat distribution -- reducing energy consumption.
Long Service Life
Properly maintained graphite crucibles deliver hundreds of melt cycles, significantly lowering total cost of ownership.
Product Types
Types of Graphite Crucibles
Not all graphite crucibles are created equal. The manufacturing method, graphite grade, and design geometry all determine performance characteristics. Understanding these distinctions is the first step to selecting the optimal crucible for your process.
Isostatic Graphite Crucibles
Manufactured through cold isostatic pressing (CIP), these crucibles exhibit ultra-fine grain structure (5-20 µm), extremely high density, and isotropic physical properties. They are the gold standard for precious metal melting, semiconductor crystal growth, and laboratory applications demanding maximum purity.
- Density: 1.75-1.90 g/cm³
- Max temp: up to 3000°C (inert atmosphere)
- Best for: gold, silver, platinum group metals

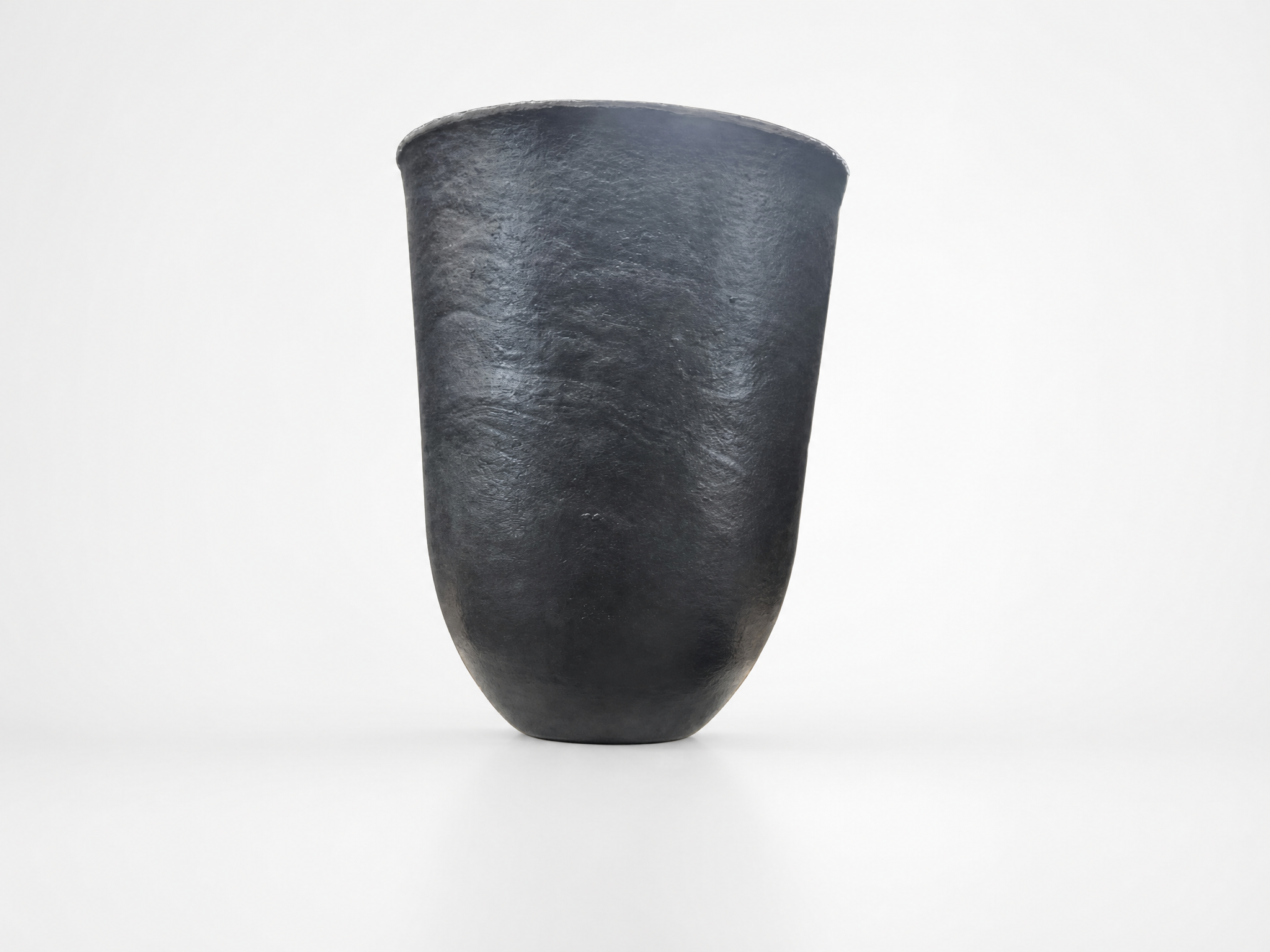

Extruded Graphite Crucibles
Produced by extrusion, these crucibles have a coarser grain structure and anisotropic properties, making them ideal for large-volume industrial metal casting applications where cost efficiency is prioritized. Widely used in aluminum, copper, and zinc smelting.
- Density: 1.60-1.75 g/cm³
- Max temp: up to 2500°C
- Best for: non-ferrous metal smelting, large batch melts

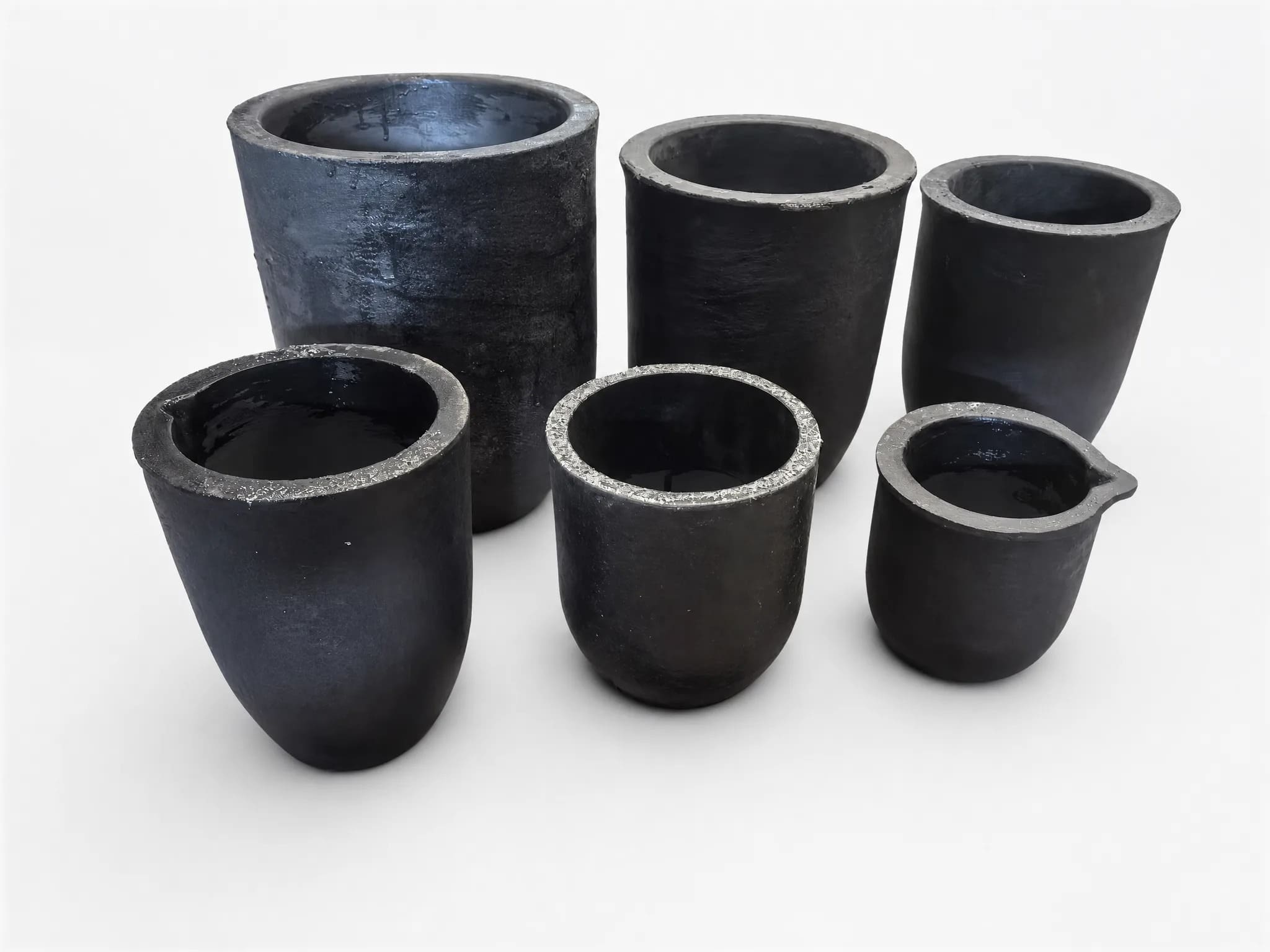

Clay-Graphite Crucibles
The traditional workhorse of foundries worldwide, clay-graphite crucibles combine graphite flakes with refractory clay binders. They offer good thermal shock resistance and are available in a wide range of standard sizes, making them a cost-effective option for conventional foundry operations.
- Graphite content: 30-50%
- Max temp: up to 1600°C
- Best for: brass, bronze, aluminum, general foundry

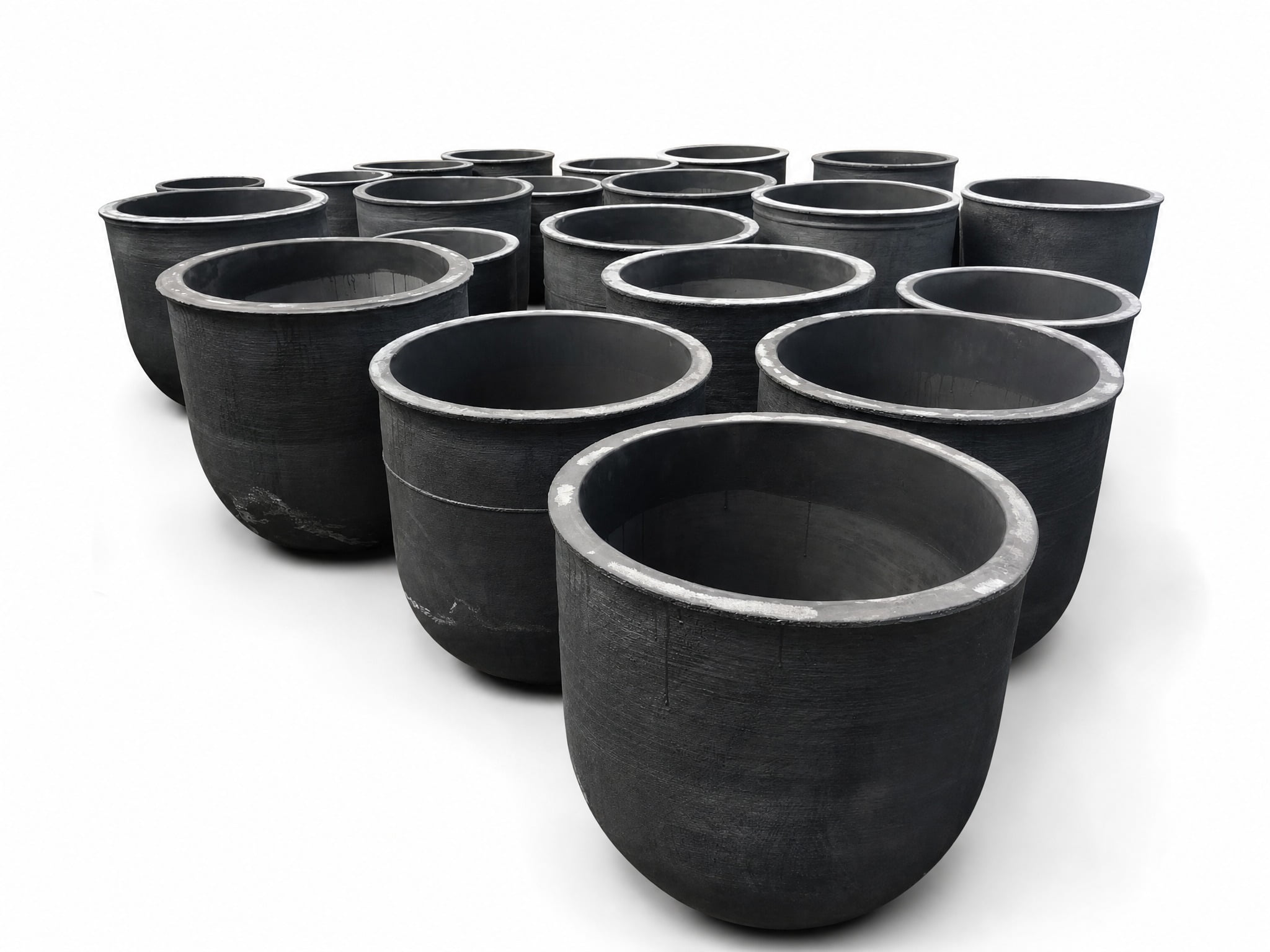

Silicon Carbide-Graphite (SiC) Crucibles
By incorporating silicon carbide into the graphite matrix, SiC-graphite crucibles achieve enhanced oxidation resistance, improved mechanical strength at high temperatures, and greater resistance to chemical attack from fluxes and slags -- extending service life in aggressive environments.
- SiC content: 10-40%
- Max temp: up to 1700°C
- Best for: high-flux environments, iron, steel, aggressive alloys
Browse Our Product Catalog
Find Your Perfect Graphite Crucible
Explore our full range of standard and custom graphite crucibles with technical specifications.
Material Science
Materials & Composition
The performance of a graphite crucible is fundamentally determined by the quality and composition of its raw materials. Understanding the material science behind graphite crucibles empowers buyers to make informed procurement decisions and set accurate performance expectations.
Natural Flake Graphite
High-purity natural flake graphite (carbon content ≥95%) forms the primary structural component, providing the fundamental thermal and electrical conductivity properties.
Refractory Binders
Refractory clay, alumina (Al₂O₃), or synthetic binders hold the graphite matrix together, contributing to mechanical strength, oxidation resistance, and thermal shock behavior.
Antioxidant Additives
Boron compounds, silicon, and proprietary antioxidant systems are incorporated to protect graphite from oxidation at elevated temperatures, significantly extending service life in air-atmosphere furnaces.
| Property | Isostatic | Extruded | Clay-Graphite | SiC-Graphite |
|---|---|---|---|---|
| Density (g/cm³) | 1.75-1.90 | 1.60-1.75 | 1.50-1.65 | 1.65-1.80 |
| Max Temperature (°C) | 3000+ | 2500 | 1600 | 1700 |
| Purity (% Carbon) | ≥99.9% | ≥99% | 30-50% | 40-70% |
| Grain Size (µm) | 5-20 | 50-200 | 500-2000 | 100-500 |
| Relative Cost | $$$$ | $$$ | $ | $$ |
Industry Use Cases
Industry Applications
Graphite crucibles serve as critical process components across a remarkably diverse range of industries. Their unique combination of high-temperature performance, chemical inertness, and thermal efficiency makes them indispensable wherever metals or materials must be melted, refined, or processed at extreme temperatures.
Precious Metal Refining
Melting and refining gold, silver, platinum, and palladium. Isostatic graphite crucibles prevent contamination and ensure maximum metal recovery in jewelry manufacturing and bullion refining.
Semiconductor Manufacturing
Crystal growth (Czochralski process), silicon purification, and compound semiconductor production rely on ultra-high-purity graphite crucibles to prevent dopant contamination.
Aluminum & Non-Ferrous Casting
High-volume aluminum, copper, brass, and zinc die casting operations depend on graphite crucibles for consistent melt quality, energy efficiency, and long campaign life.
Foundry & Investment Casting
Precision investment casting for aerospace, automotive, and medical device components requires crucibles that maintain dimensional stability and chemical purity through hundreds of melt cycles.
Chemical & Analytical Labs
Laboratory graphite crucibles are used for sample preparation, fire assay, loss-on-ignition (LOI) testing, and high-temperature chemical synthesis requiring inert containment.
Nuclear & Advanced Energy
Nuclear fuel processing, thorium/uranium handling, and advanced energy research applications leverage graphite's neutron moderation properties and extreme temperature stability.
Buyer's Guide
How to Select the Right Graphite Crucible
Selecting the wrong crucible is one of the most common -- and costly -- mistakes in metal processing operations. The following framework guides you through the critical decision factors that determine optimal crucible selection for your specific application.
Define Your Operating Temperature
The melting point of your target material plus a 15-20% safety margin determines the minimum required temperature rating. For aluminum (660°C), a clay-graphite crucible suffices. For platinum (1768°C) or silicon (1414°C), isostatic graphite is required. Never operate a crucible at its rated maximum -- sustained operation at 80-85% of max temperature dramatically extends service life.
Identify Chemical Compatibility
Graphite reacts with certain elements at high temperatures. It is incompatible with strongly oxidizing atmospheres (pure O₂), certain refractory metals (tungsten, molybdenum above 1000°C in air), and some aggressive fluxes. For reactive metals, specify coated or high-density isostatic grades. Always verify chemical compatibility with your specific melt chemistry before ordering.
Determine Required Capacity & Geometry
Crucible capacity is rated in kg of specific metals (e.g., "A10" = 10 kg aluminum, "B10" = 10 kg brass). Select capacity based on your maximum batch size with 10-15% headroom to prevent overflow. Geometry (cylindrical, conical, bilge-shaped) should match your furnace type -- induction furnaces typically require taller, narrower profiles while resistance furnaces accommodate wider designs.
Evaluate Purity Requirements
For standard foundry applications, standard-grade graphite is sufficient. For semiconductor, pharmaceutical, or nuclear applications, specify ultra-high-purity grades with ash content below 10 ppm. Request certificates of analysis (CoA) and trace element reports from your supplier. Purity directly impacts your product quality and regulatory compliance.
Calculate Total Cost of Ownership
Unit price is rarely the most important cost factor. Calculate cost-per-melt by dividing crucible price by expected service life (number of melt cycles). A premium isostatic crucible at 5× the price but delivering 8× the service life represents significantly better value. Factor in energy savings from superior thermal conductivity and reduced downtime from fewer crucible changes.
Not sure which crucible is right for you?
Our technical team provides free application consultation and can recommend the optimal grade for your specific process parameters.
Operations
Maintenance & Best Practices
Proper handling and maintenance can extend graphite crucible service life by 30-50%, dramatically reducing your per-melt consumable costs. The following best practices are derived from decades of industrial experience.
✓ Do's
- Pre-heat gradually -- always heat new crucibles slowly (200°C/hour) to drive out moisture and prevent thermal shock cracking.
- Store properly -- store crucibles in a dry, warm environment (above 15°C) to prevent moisture absorption which causes spalling.
- Inspect regularly -- visually inspect for cracks, thinning walls, or oxidation pitting after each melt cycle.
- Use appropriate flux -- select fluxes compatible with graphite and use minimum effective quantities to reduce chemical attack.
- Keep records -- track melt cycles per crucible to predict replacement intervals and avoid unexpected failures.
✗ Don'ts
- Never quench rapidly -- sudden cooling from high temperatures causes thermal shock and catastrophic cracking.
- Don't overfill -- filling beyond 85% capacity risks spillage and uneven thermal stress distribution.
- Avoid mechanical impact -- graphite crucibles are brittle; dropping or striking them can cause invisible micro-cracks that lead to failure.
- Don't use damaged crucibles -- a cracked crucible is a safety hazard and should be immediately retired regardless of remaining wall thickness.
- Avoid cross-contamination -- never use the same crucible for different metal alloys without thorough cleaning between uses.
Material Comparison
Graphite vs. Other Crucible Materials
Graphite is not the only crucible material available. Understanding how it compares to alternatives helps confirm whether graphite is the right choice -- or whether a different material better suits your specific constraints.
| Criteria | Graphite | Alumina (Al₂O₃) | Zirconia (ZrO₂) | Silicon Carbide | Quartz |
|---|---|---|---|---|---|
| Max Temp. | 3000°C+ | 1750°C | 2400°C | 1650°C | 1200°C |
| Thermal Conductivity | Excellent | Poor | Poor | Good | Poor |
| Thermal Shock Resist. | Excellent | Poor | Moderate | Good | Good |
| Oxidizing Atmosphere | Limited | Excellent | Excellent | Moderate | Excellent |
| Cost Efficiency | High | Moderate | Low | Moderate | High |
| Purity Available | 99.9%+ | 99.9% | 99.5% | 98% | 99.9% |
* Graphite performs poorly in strongly oxidizing atmospheres without protective coatings. For air-atmosphere applications at temperatures below 1000°C, consider alumina alternatives.
Common Questions
Frequently Asked Questions
These are the questions our technical team receives most frequently from buyers, engineers, and procurement managers evaluating graphite crucibles for the first time.
How long does a graphite crucible last?
Can graphite crucibles be used in electric induction furnaces?
Will graphite contaminate my metal melt?
What is the difference between A-series and B-series crucible sizing?
Can you manufacture custom-shaped graphite crucibles?
How should I dispose of used graphite crucibles?
Our Products
Graphite Crucible Products
Browse our curated range of graphite crucibles -- from standard foundry grades to ultra-high-purity laboratory and semiconductor grades.
Premium Grade
Isostatic Graphite Crucibles
Ultra-high purity for precious metals and semiconductor applications.
View DetailsIndustrial Grade
Extruded Graphite Crucibles
Cost-efficient for large-volume aluminum and non-ferrous metal melting.
View DetailsFoundry Grade
Clay-Graphite Crucibles
Traditional workhorse for brass, bronze, and general foundry applications.
View DetailsCustom Solutions

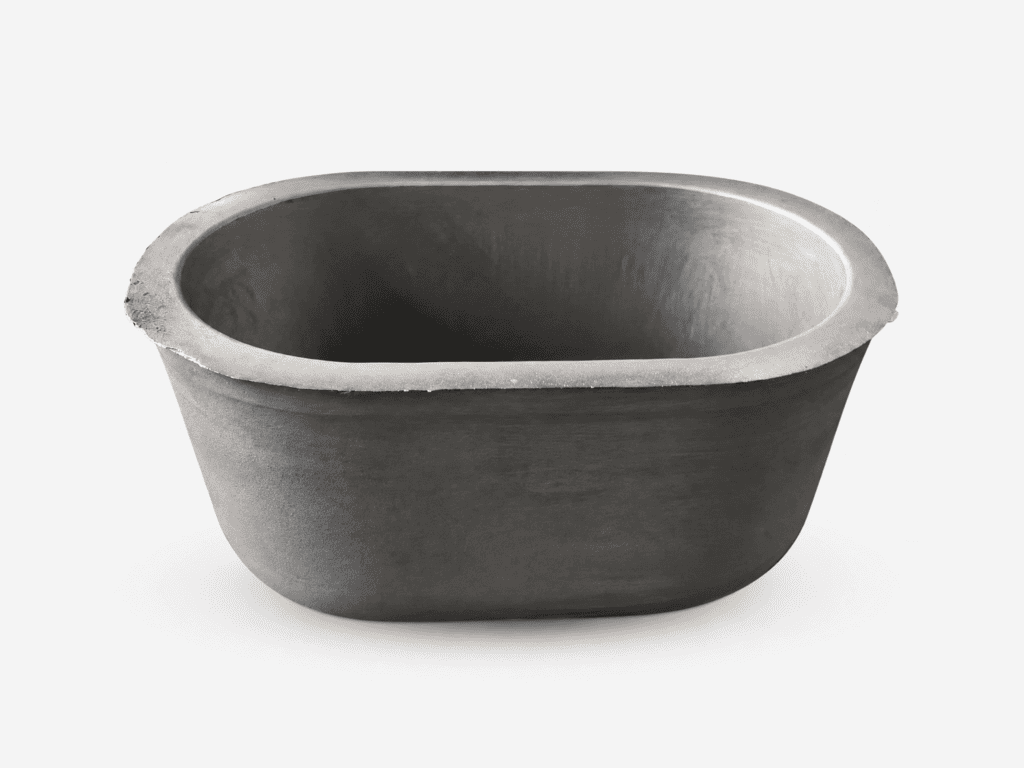

Custom Graphite Crucibles
